Upstairs: existing layout

3D loads when you choose to explore

Drag to orbit · scroll or pinch to zoom · right-drag to pan

Model notes & downloads

Three bedrooms, the current bathroom, primary closet and landing, with the recorded upstairs measurements.

Owner measurements inform the rooms, closets and hallway. The primary chimney is corrected to 18 × 25 inches. The queen mattress is nominally 60 × 80 inches; bed-frame, nightstand and rug sizes remain photo-based estimates. Ceiling height, hidden structure and some opening positions still need verification.

Related: Upstairs: two bathrooms

Rendered views & plans

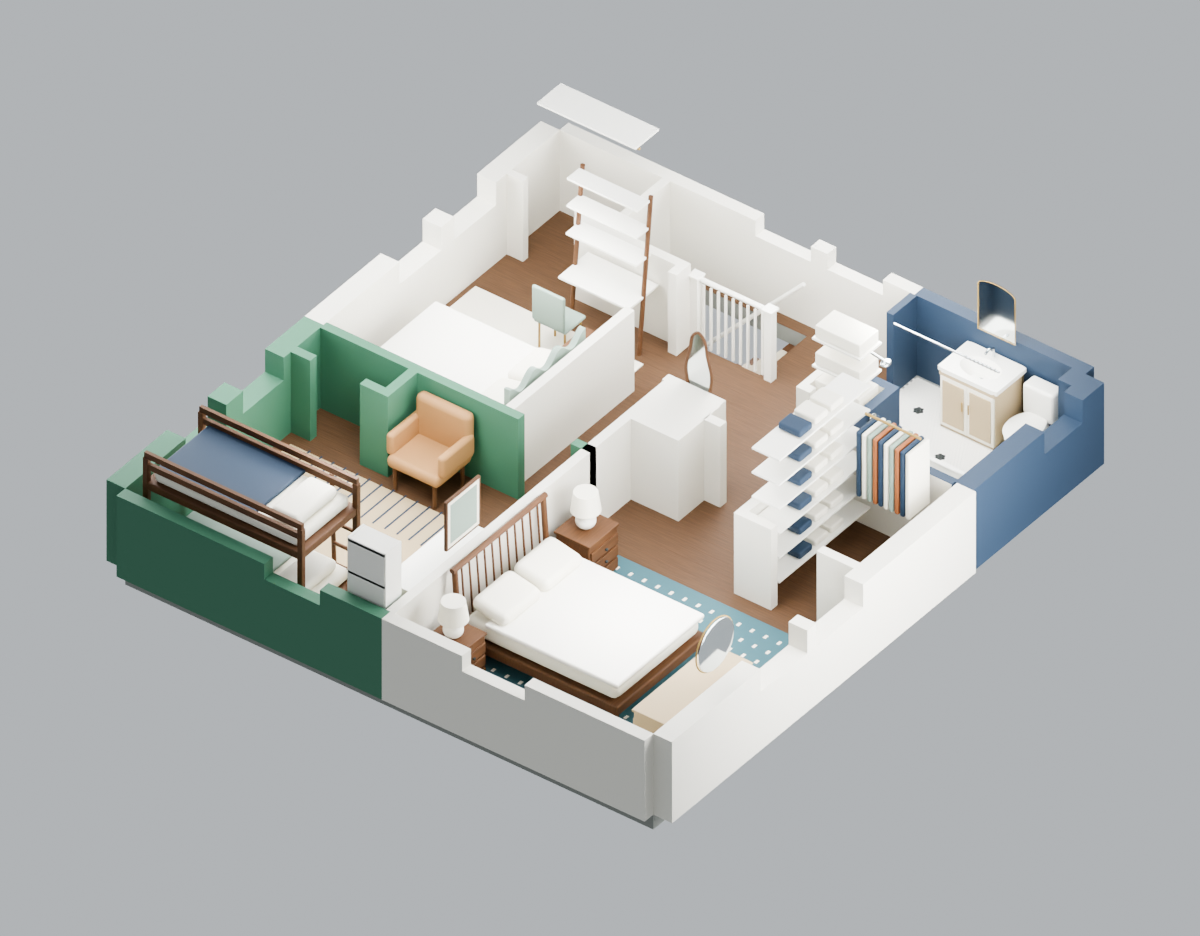

Upstairs: existing layout
Upstairs: existing layoutDownload PNG

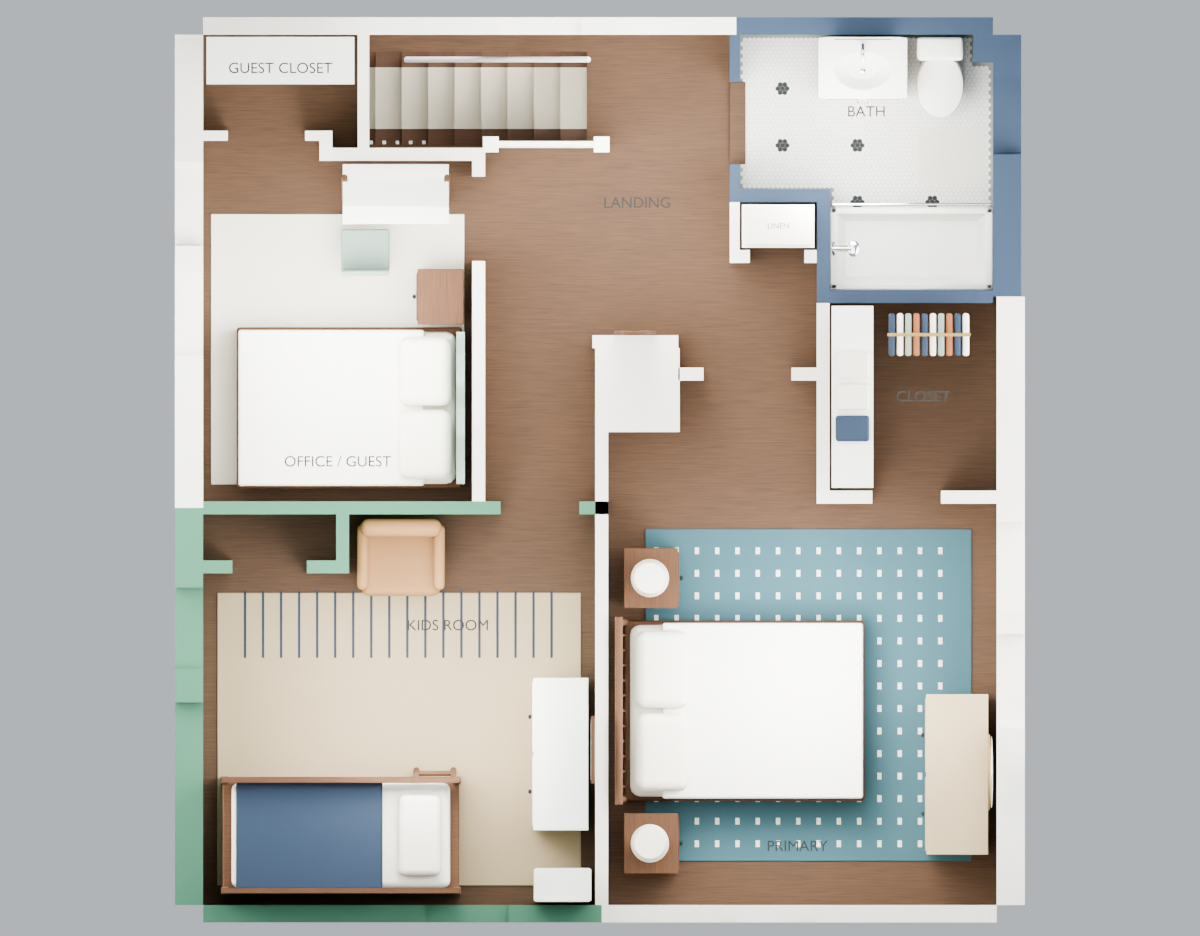

Existing upstairs floor plan
Existing upstairs floor planDownload PNG
Primary bedroom
Primary bedroomDownload PNG
Primary closet and hall
Primary closet and hallDownload PNG
Kids’ room
Kids’ roomDownload PNG
Office / guest room
Office / guest roomDownload PNG
Existing bathroom
Existing bathroomDownload PNG
Vanity and mirror
Vanity and mirrorDownload PNG
Tiled bathroom ceiling
Tiled bathroom ceilingDownload PNG
Hall and linen cupboard
Hall and linen cupboardDownload PNG
Top landing
Top landingDownload PNG
Looking down the stairs
Looking down the stairsDownload PNG

Office / guest measurements

Office / guest measurements
Open the full SVG

Kids’ room measurements

Kids’ room measurements
Open the full SVG

Bathroom measurements

Bathroom measurements
Open the full SVG

Hall and primary measurements

Hall and primary measurements
Open the full SVG
